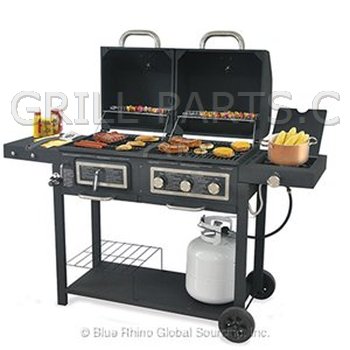

Backyard Grill GBC1690W Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1690W - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1690W owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1690W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1690W-4E658309931-PartsExpS1.gif

Replacement BBQ grill parts for Backyard Grill model: GBC1690W

This page shows all of the parts we know fit model Backyard Grill GBC1690W. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill GBC1690W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1690W Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1690W.

Part Number: 19951 (Replaces Backyard Grill 55-24-205)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All Backyard Grill Burners.

GBC1690W Cooking Grids

Click for photos

Cast iron cooking grid for Backyard Grill model GBC1690W. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-59P-CI (Replaces Backyard Grill 55-24-206)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 9 1/4”
Material: cast iron
Weight: 5.45

==> All Backyard Grill Cooking Grids.

GBC1690W Heat Plates

Click for photos

Uniflame Heat Plate for Backyard Grill model GBC1690W.

Part Number: UFHP4 (Replaces Backyard Grill 55-24-198)
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 3 13/16”
Material: stainless steel
Weight: 0.60

==> All Backyard Grill Heat Plates.

GBC1690W Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1690W Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
3” diameter
Requires 3/8” mounting hole

Part Number: 00016 (Replaces Backyard Grill 55-24-461)
Dimensions: 3” x 3”
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1690W Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

==> All GBC1690W Accessories.
