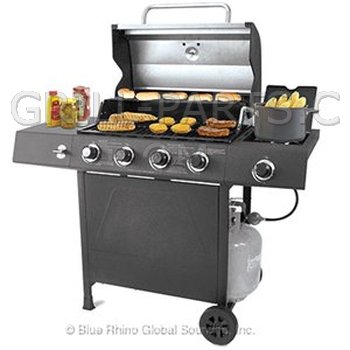

Backyard Grill GBC1646WSD-C Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1646WSD-C - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1646WSD-C owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1646WSD-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1646WSD-C-35836333BB5844-PartsExpS1.gif

Replacement grill parts for Backyard Grill model: GBC1646WSD-C

All of the parts we have for Backyard Grill GBC1646WSD-C are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1646WSD-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1646WSD-C Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1646WSD-C.

Part Number: 19921 (Replaces Backyard Grill 55-24-836)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1646WSD-C Cooking Grids

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1646WSD-C. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Backyard Grill 55-25-013)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for Backyard Grill model GBC1646WSD-C.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Backyard Grill model GBC1646WSD-C. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All Backyard Grill Cooking Grids.

GBC1646WSD-C Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1646WSD-C.

Part Number: 91641 (Replaces Backyard Grill 55-24-835)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1646WSD-C Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1646WSD-C Grease Trays

Click for photos

Stainless steel grease draining tray with grease cup and holder. Made in USA.

Part Number: CLA-DS0276 (Replaces Backyard Grill 55-24-842)
Dimensions: 15 3/4” x 26 7/8”
Material: stainless steel
Weight: 4.6

==> All Backyard Grill Grease Trays.

GBC1646WSD-C Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-431)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1646WSD-C Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All GBC1646WSD-C Accessories.
