Member's Mark BQ06043-1-N Grill Parts

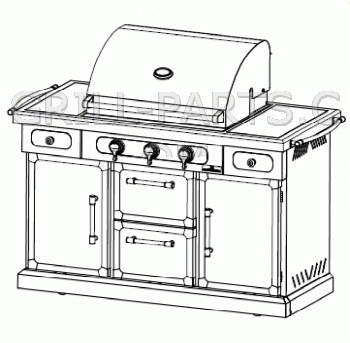

Members Mark Professional Natural Gas Island Grill

Highest quality replacement parts for your Member's Mark BQ06043-1-N - Free USA shipping $49 or more* - No Sales Tax*

Member's Mark BQ06043-1-N owners manual and diagrams

Click the small images on the right to view Member's Mark BQ06043-1-N exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Members Mark BQ06043-1-N-51939655888838-PartsExpS1.gif

Members Mark BQ06043-1-N-51939655888838-PartsExpS2.gif

Members Mark BQ06043-1-N-51939655888838-PartsLstS1.gif

Replacement grill parts to fit Member's Mark model: BQ06043-1-N

This page shows all of the parts we know fit model Member's Mark BQ06043-1-N. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Member's Mark grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Member's Mark BQ06043-1-N BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Member's Mark model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

BQ06043-1-N Burners

Click for photos

Stainless steel burner for Member's Mark model BQ06043-1-N.

Part Number: SCTB1
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

Click for photos

Stainless steel burner for Member's Mark model BQ06043-1-N.

Part Number: SCTB2
Dimensions: 15 1/2” x 4 3/4”
Material: stainless steel
Weight: 1.0

==> All Member's Mark Burners.

BQ06043-1-N Burner Brackets and Carryovers

Click for photos

Burner support rail (bracket). Made in USA

Part Number: CLA-MS0173
Dimensions: 27 13/16” x 5 1/8”
Material: stainless steel
Weight: 1.2

==> All Member's Mark Burner Brackets and Carryovers.

BQ06043-1-N Cooking Grids

Click for photos

Stainless steel cooking grid for Member's Mark model BQ06043-1-N. Like the originals these replace, these grids are made of hollow stainless tubes.

Part Number: 56S43
Dimension Front-to-Back: 18 5/8”
Dimension Side-to-Side: 26 1/2”
Material: stainless steel tubes
Weight: 8.0

Click for photos

Cast iron cooking grid for Member's Mark model BQ06043-1-N. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-71P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 7 5/8”
Material: cast iron
Weight: 5.55

Click for photos

Cast iron cooking grid for Member's Mark model BQ06043-1-N. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-72P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 9 1/2”
Material: cast iron
Weight: 6.45

==> All Member's Mark Cooking Grids.

BQ06043-1-N Heat Plates

Click for photos

SET OF THREE/3 PACK Stainless steel heat diffuser for Member's Mark model BQ06043-1-N. On some grill models it is also known as a Flame Tamer. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0151-X3
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 8 1/16”
Material: stainless steel
Weight: 4.05

Click for photos

Stainless steel heat plate for Member's Mark model BQ06043-1-N.

Part Number: SCHP3
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 1.0

Click for photos

Stainless steel heat plate for Member's Mark model BQ06043-1-N.

Part Number: SCHP2
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 8 1/8”
Material: stainless steel
Weight: 1.3

==> All Member's Mark Heat Plates.

BQ06043-1-N Igniter Components

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-31B
Weight: .05

==> All Member's Mark Igniter Components.

BQ06043-1-N Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All BQ06043-1-N Accessories.
