Member's Mark BQ06042-1 Grill Parts

Member's Mark logo



Member's Mark BQ06042-1

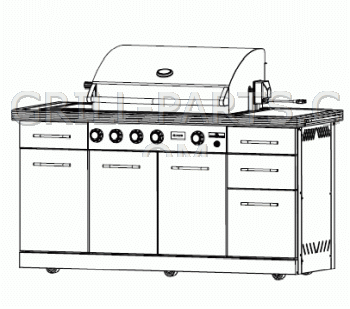

Members Mark Professional Liquid Propane Gas Island Grill



Highest quality replacement parts for your Member's Mark BQ06042-1 - Free USA shipping $49 or more* - No Sales Tax*



Member's Mark BQ06042-1 owners manual and diagrams
Click the small images on the right to view Member's Mark BQ06042-1 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Members Mark BQ06042-1-366939644830-PartsExpS1.gif  Members Mark BQ06042-1-366939644830-PartsExpS2.gif  Members Mark BQ06042-1-366939644830-PartsLstS1.gif

Replacement BBQ grill parts for Member's Mark model: BQ06042-1
On this page you'll find all of the parts that fit model Member's Mark BQ06042-1. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Member's Mark grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Member's Mark BQ06042-1 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Member's Mark model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



BQ06042-1 Burners

CLA-BL0229
Click for photos
304 Stainless steel Infrared rear rotisserie burner with ceramic wafer for Member's Mark model BQ06042-1. For use with both liquid propane (LP) and natural gas grills. 8,000 BTU. Orifice not included. Use old orifice or purchase our orifice part# CLA-VB0245 for LP, or part# CLA-VB0246 for natural gas applications.

Dimensions:
  • Maximum overall length, including mounting tab on one end: 17”
  • Maximum width: 3 3/8”
  • Burner box 15 3/8” x 3 3/8”
  • Mounting holes: 16 1/8” on center


Part Number: CLA-BL0229
Dimensions: 3 3/8” x 17”
Material: stainless steel and ceramic
Weight: 3.0

$118.70

Qty


SCTB2
Click for photos
Stainless steel burner for Member's Mark model BQ06042-1.

Part Number: SCTB2
Dimensions: 15 1/2” x 4 3/4”
Material: stainless steel
Weight: 1.0

$49.23

Qty


==> All Member's Mark Burners.






BQ06042-1 Burner Brackets and Carryovers

CLA-MS0109
Click for photos
Stainless steel burner support bracket. Made in USA

Part Number: CLA-MS0109
Dimensions: 31 3/4
Material: stainless steel
Weight: 3.0

$59.10

Qty


==> All Member's Mark Burner Brackets and Carryovers.






BQ06042-1 Cooking Grids

5S463
Click for photos
Stainless steel cooking grids (set of 3) for Member's Mark model BQ06042-1.

Part Number: 5S463
Dimension Front-to-Back: 18 5/8”
Dimension Side-to-Side: 30 3/4”
Material: stainless steel tubes
Weight: 9.0

$130.00

Qty


CG-70P-CI
Click for photos
Cast iron cooking grid for Member's Mark model BQ06042-1. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-70P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 11 1/2”
Material: cast iron
Weight: 8.2

$64.00

Qty


CG-72P-CI
Click for photos
Cast iron cooking grid for Member's Mark model BQ06042-1. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-72P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 9 1/2”
Material: cast iron
Weight: 6.45

$51.52

Qty


==> All Member's Mark Cooking Grids.






BQ06042-1 Heat Plates

CLA-TS0151-X3
Click for photos
SET OF THREE/3 PACK Stainless steel heat diffuser for Member's Mark model BQ06042-1. On some grill models it is also known as a Flame Tamer. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0151-X3
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 8 1/16”
Material: stainless steel
Weight: 4.05

$97.98

Qty


==> All Member's Mark Heat Plates.






BQ06042-1 Heat Shields

CLA-MS0169
Click for photos
Bottom heat shield, which measures 6 3/4” x 29 7/8”. When adding the attached support brackets, the 6 3/4” becomes 7 3/4”. Made in USA

Part Number: CLA-MS0169
Dimensions: 7 3/4” x 29 7/8”
Material: stainless steel
Weight: 2.0

$64.59

Qty


==> All Member's Mark Heat Shields.






BQ06042-1 Grease Trays

CLA-DS0184
Click for photos
Stainless steel grease tray. The front-to-back dimension of 17 1/4” does not include the handle. With the handle included, the overall dimension is 18”. Made in USA

Part Number: CLA-DS0184
Dimensions: 17 1/4” x 26 5/8”
Material: stainless steel
Weight: 5.2

$73.68

Qty


==> All Member's Mark Grease Trays.






BQ06042-1 Warming Racks

CLA-WS0165
Click for photos
Premium grade stainless steel alternative warming rack for delicate foods like vegetabes and seafood.

Part Number: CLA-WS0165
Dimensions: 7 1/16” x 30 1/4”
Material: stainless steel
Weight: 2.35

$62.88

Qty


==> All Member's Mark Warming Racks.






BQ06042-1 Valves, Orifices, and Manifolds

CLA-VB0245
Click for photos
#63 orifice for infrared burner CLA-BL0229; use on liquid propane (LP) gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0245
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

$24.42

Qty


#55 orifice for infrared burners use on natural Gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0246
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

$22.60

Qty


==> All Member's Mark Valves, Orifices, and Manifolds.






BQ06042-1 Miscellaneous Repair Parts

CLA-MS0166KIT
Click for photos
Smoker drawer kit assembly. This aftermarket part replaces the drawer and includes the following:
  • Drawer with handle
  • Drawer cover
  • Mounting hardware and instructions
  • Made in USA

WARNING: Before you order this part, please verify it can be used in your gas grill; refer to the dimensions and measure the space allowed in your grill. This smoker drawer kit does not fit into all grills. We know it fits four brand names/six model numbers. Please refer to our Return Policy.

Part Number: CLA-MS0166KIT
Dimensions: 18 1/4” x 3 3/4”
Material: stainless steel
Weight: 2.1

$49.93

Qty


==> All Member's Mark Miscellaneous Repair Parts.






BQ06042-1 Accessories

00150
Click for photos
Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

$25.40

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


RR-2
Click for photos
Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

$13.30
SALE  $14.99
Qty


VTC-B
Click for photos
Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

$4.93

Qty


==> All BQ06042-1 Accessories.
