Uniflame GBC1747WPF-U Grill Parts

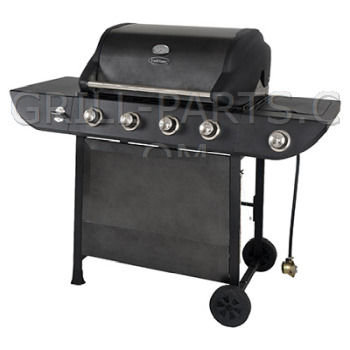

Uniflame 4-Burner LP gas grill with side burner

Highest quality replacement parts for your Uniflame GBC1747WPF-U - Free USA shipping $49 or more* - No Sales Tax*

Uniflame GBC1747WPF-U owners manual and diagrams

Diagrams & owners manual not available for grill model# GBC1747WPF-U. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts to fit Uniflame model: GBC1747WPF-U

On this page you'll find all of the parts that fit model Uniflame GBC1747WPF-U. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Uniflame grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Uniflame GBC1747WPF-U BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Uniflame model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1747WPF-U Burners

Click for photos

stainless steel burner for Uniflame model GBC1747WPF-U.

Part Number: 19921
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Uniflame Burners.

GBC1747WPF-U Burner Brackets and Carryovers

Click for photos

stainless steel cross-over

Part Number: 09951
Dimensions: 7 1/2” x 1 5/8”
Material: stainless steel
Weight: 1.0

==> All Uniflame Burner Brackets and Carryovers.

GBC1747WPF-U Cooking Grids

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Uniflame model GBC1747WPF-U. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

Click for photos

Cast Iron Cooking Grid - Charbroil for Uniflame model GBC1747WPF-U.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Cast Iron Cooking Grids for Uniflame model GBC1747WPF-U. SET OF THREE (3).

Part Number: CG-97P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

==> All Uniflame Cooking Grids.

GBC1747WPF-U Heat Plates

Click for photos

porcelain steel Heat Plate for Uniflame model GBC1747WPF-U.

Part Number: 91641
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Uniflame Heat Plates.

GBC1747WPF-U Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Uniflame Igniter Components.

GBC1747WPF-U Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Uniflame Heat indicators and Meat Thermometers.

GBC1747WPF-U Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All GBC1747WPF-U Accessories.
