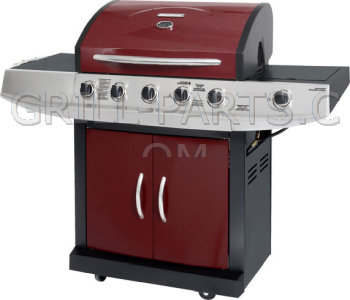

Brinkmann 810-2545-W Grill Parts

Highest quality replacement parts for your Brinkmann 810-2545-W - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-2545-W owners manual and diagrams

Diagrams & owners manual not available for grill model# 810-2545-W. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Brinkmann model: 810-2545-W

All of the parts we have for Brinkmann 810-2545-W are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-2545-W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-2545-W Burners

Click for photos

Stainless steel burner for OEM # 154-9520-0 for Brinkmann model 810-2545-W.

Part Number: BMTB3
Dimensions: 15 5/16
Material: stainless steel
Weight: .70

==> All Brinkmann Burners.

810-2545-W Burner Brackets and Carryovers

Click for photos

Stainless steel cross over tube. Channels gas between burners.

Part Number: BMCO7
Dimensions: 2 3/8” x 6 15/16”
Material: stainless steel
Weight: 0.15

==> All Brinkmann Burner Brackets and Carryovers.

810-2545-W Cooking Grids

Click for photos

Cast iron cooking grid for Brinkmann model 810-2545-W. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-67P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 6.95

Click for photos

Cast iron cooking grid for Brinkmann model 810-2545-W. Porcelain treated, matte finish. Fits Many Brinkman, Grill King, Kenmore, Master Forge and Other Import Grills. Sold individually, number required varies.

Part Number: CG-73P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 8 3/4”
Material: cast iron
Weight: 5.55

==> All Brinkmann Cooking Grids.

810-2545-W Heat Plates

Click for photos

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates for Brinkmann model 810-2545-W. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0135-X4
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 2.64

Click for photos

Stainless steel Heat Distribution Plate / Flame Tamer for Brinkmann model 810-2545-W.

Part Number: CHMBHP3
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: .66

==> All Brinkmann Heat Plates.

810-2545-W Igniter Components

Click for photos

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 02415
Material: ceramic
Weight: 0.1

==> All Brinkmann Igniter Components.

810-2545-W Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-2545-W Accessories

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All 810-2545-W Accessories.
