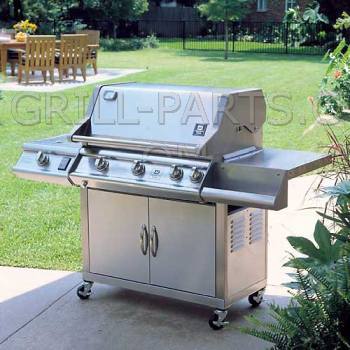

Member's Mark Y0202XC Grill Parts

Cast iron burner for Member's Mark model Y0202XC.

Part Number: CISC (Replaces Member's Mark P1925C)
Dimensions: 15 3/4” x 4 3/4”
Material: cast iron
Weight: 5.0

Cast stainless steel burner for Member's Mark model Y0202XC. Tired of changing out rusted cast iron burners? Far superior to the cast iron and brass versions, this burner will probably outlast your grill. Designed to replace cast iron and brass burners of same design..

Part Number: 29251-CSS-X3
Dimensions: 16” x 4 5/8”
Material: cast stainless steel
Weight: 10.05

Cast stainless steel burner for Member's Mark model Y0202XC. Tired of changing out rusted cast iron burners? Far superior to the cast iron and brass versions, this burner will probably outlast your grill. Designed to replace cast iron and brass burners of same design..

Part Number: 29251-CSS
Dimensions: 16” x 4 5/8”
Material: cast stainless steel
Weight: 3.35

Cast iron burners for Member's Mark model Y0202XC. SET OF THREE(3).

Part Number: 29251-X3
Dimensions: 15 3/4” x 4 3/4”
Material: cast iron
Weight: 19.2

Cast iron burner for Member's Mark model Y0202XC.

Part Number: CISC-X3
Dimensions: 15 3/4” x 4 3/4”
Material: cast iron
Weight: 15.0

Stainless steel burner bracket. Sometimes called a cross over channel. Made in USA.

Part Number: CLA2219 (Replaces Member's Mark P0220321AD)
Dimensions: 31 1/2
Material: 304 stainless steel
Weight: 2.3

Premium quality heavy duty stainless steel cooking grid for Member's Mark model Y0202XC. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 10 1/4”
• Made in USA.
• Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.

Part Number: CLA-GS0005 (Replaces Member's Mark P01602029C)
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

Porcelain steel cooking grids for Member's Mark model Y0202XC. Porcelain enameled, glossy finish. Sold as a set of three (3). If you prefer a heavier cast iron porcelain enameled glossy finish cooking grid, select four (4) panels of # 65131.

Part Number: 54453
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 31 1/2”
Material: porcelain steel wire
Weight: 15.10

Cast iron cooking grid for Member's Mark model Y0202XC. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-68P-CI
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10 1/2”
Material: cast iron
Weight: 7.2

Cast iron cooking grid for Member's Mark model Y0202XC.

• Sold inividually
• Porcelain treated, matte finish
• Number required varies by grill model
• Each panel measures 19 1/4” x 10 3/8”

Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

Cast iron cooking grids for Member's Mark model Y0202XC. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/4” x 10 3/8”
• Overall dimensions: 19 1/4” x 31 1/8”

Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

Cast iron cooking grids for Member's Mark model Y0202XC. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 18 7/8” x 10 1/2”
• Overall dimensions: 18 7/8” x 31 1/2”

Part Number: CG-68P-CI-X3
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 31 1/2”
Material: cast iron
Weight: 21.6

Premium quality stainless steel cooking grid for Member's Mark model Y0202XC. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it.

• 304 commercial grade stainless steel
• 1/4” diameter solid stainless rods
• Dimensions: 18 7/8” x 10”
• Made in USA.
• Sold individually.

Part Number: CLS9151
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10”
Material: solid stainless steel
Weight: 4.0

Cast iron cooking grid for Member's Mark model Y0202XC. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-71P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 7 5/8”
Material: cast iron
Weight: 5.55

Ceramic Flame Tamers for Member's Mark model Y0202XC. Box of 6. Use with rack part# BG-45 (see Rock Grates).

Part Number: SCFT (Replaces Member's Mark P1736A)
Dimension Front-to-Back: 7”
Dimension Side-to-Side: 8”
Material: ceramic
Weight: 12.0

Nickel plated heavy duty steel 5/16” thick Flame Tamer rack for Member's Mark model Y0202XC. Holds six ceramic Flame Tamers part # SCFT/P1736A-R (not included). This is an aftermarket part made to replace original part numbers P1736B and P01722001B, which are no longer available.

Fits models:

• Y0101XC
• Y0202XC
• and others

Part Number: P1736B-R (Replaces Member's Mark P1736B)
Dimension Front-to-Back: 16 5/8”
Dimension Side-to-Side: 31”
Material: nickel plated steel
Weight: 5.6

SET OF THREE/3 PACK Stainless steel Flame Tamer for Member's Mark model Y0202XC. For many models, can also be used to replace ceramic flame tamers and the rack that holds them. Made in USA.

Part Number: CLA2721-X3
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 9 3/4”
Material: stainless steel
Weight: 7.2

Replacement steel Flame Tamer for Member's Mark model Y0202XC. For many models, can also be used to replace ceramic flame tamers and the rack that holds them. Made in USA.

Part Number: CLA1721
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 3/4”
Material: carbon steel
Weight: 3.5

Stainless steel Flame Tamer for Member's Mark model Y0202XC. For many models, can also be used to replace ceramic flame tamers and the rack that holds them. Made in USA.

Part Number: CLA2721
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 9 3/4”
Material: stainless steel
Weight: 2.4

Stainless steel collector box and ceramic electrode with round connector. Includes mounting nuts and washer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-17B (Replaces Member's Mark P2623B)
Weight: 0.11

Battery powered push button igniter.

• Has four (4) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B (Replaces Member's Mark P02502154C)
Weight: 0.3

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG4010
Weight: 0.2

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B
Weight: 0.02

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Stainless steel grease draining tray, far superior to the original painted steel tray.
* Stainless steel for long life
* Uses widely available throw away aluminum loaf pans (one supplied). Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-DS0002 (Replaces Member's Mark P2738B)
Dimensions: 15 3/4” x 31 7/8”
Material: stainless steel
Weight: 6.0

Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 65” left to right
• 23” front to back
• 42” top to bottom

Please measure your grill to determine which cover fits best. Avoid too snug a fit as a slightly oversized cover is easier to take off and put back on.

Part Number: CV-5PREM
Material: Vinyl
Weight: 3.5

Black control knob (Some originals may have been chrome).

• Off position D-Value: 12 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 6mm
• Knob shaft: None

Part Number: 03430
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Straight thru L.P regulator with 28” hose. Adequate to 90,000 BTU.

Part Number: HR-6B (Replaces Member's Mark P3632N)
Dimensions: 28
Weight: 1.50

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Brass long blunt-end hood orifice drilled to #64 starter hole. Fits valve 3042C, others. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31800
Dimensions: 1 5/16” x 0 9/16”
Material: brass
Weight: 0.1

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
