RevoAce GBC1706W Grill Parts

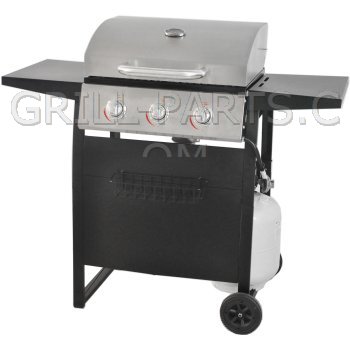

RevoAce 3-Burner Space Saver Gas Grill, Stainless Steel and Black, Walmart # 564153784

Highest quality replacement parts for your RevoAce GBC1706W - Free USA shipping $49 or more* - No Sales Tax*

RevoAce GBC1706W owners manual and diagrams

Click the small images on the right to view RevoAce GBC1706W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce GBC1706W-4E658293331-PartsExpS1.gif

RevoAce GBC1706W-4E658293331-PartsLstS1.gif

Replacement grill parts for RevoAce model: GBC1706W

This page shows all of the parts we know fit model RevoAce GBC1706W. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce GBC1706W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1706W Burners

Click for photos

stainless steel burner for RevoAce model GBC1706W.

Part Number: 19941 (Replaces RevoAce G1306-060)
Dimensions: 15 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All RevoAce Burners.

GBC1706W Cooking Grids

Click for photos

Stamped porcelain steel cooking grids; set of two for RevoAce model GBC1706W.

Part Number: 51352
Dimension Front-to-Back: 15 3/4”
Dimension Side-to-Side: 21”
Material: stamped porcelain steel
Weight: 5.0

==> All RevoAce Cooking Grids.

GBC1706W Heat Plates

Click for photos

Uniflame Heat Plate for RevoAce model GBC1706W.

Part Number: UFHP4 (Replaces RevoAce B0212-040)
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 3 13/16”
Material: stainless steel
Weight: 0.60

==> All RevoAce Heat Plates.

GBC1706W Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

GBC1706W Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces RevoAce B0104-JRE)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

GBC1706W Accessories

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Click for photos

8” Plastic grill brush with scraper.

Part Number: 77330
Weight: 0.3

==> All GBC1706W Accessories.
