RevoAce GBC1748WPF Grill Parts

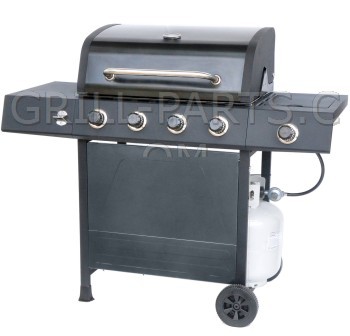

RevoAce 4-Burner Gas Grill with Side Burner, Pewter Fleck and Black, Walmart # 564153797

Highest quality replacement parts for your RevoAce GBC1748WPF - Free USA shipping $49 or more* - No Sales Tax*

RevoAce GBC1748WPF owners manual and diagrams

Click the small images on the right to view RevoAce GBC1748WPF exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce GBC1748WPF-4E65826111D839-PartsExpS1.gif

RevoAce GBC1748WPF-4E65826111D839-PartsLstS1.gif

Replacement grill parts for the RevoAce model: GBC1748WPF

All of the parts we have for RevoAce GBC1748WPF are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce GBC1748WPF BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1748WPF Burners

Click for photos

stainless steel burner for RevoAce model GBC1748WPF.

Part Number: 19921 (Replaces RevoAce G1646-050)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All RevoAce Burners.

GBC1748WPF Cooking Grids

Click for photos

Cast Iron Cooking Grids for RevoAce model GBC1748WPF. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces RevoAce G1646-030)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for RevoAce model GBC1748WPF.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for RevoAce model GBC1748WPF. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All RevoAce Cooking Grids.

GBC1748WPF Heat Plates

Click for photos

porcelain steel Heat Plate for RevoAce model GBC1748WPF.

Part Number: 91641 (Replaces RevoAce B0212-005)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All RevoAce Heat Plates.

GBC1748WPF Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

GBC1748WPF Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces RevoAce B0104-JRE)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

GBC1748WPF Accessories

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All GBC1748WPF Accessories.
