RevoAce WM16-GBC1429WB Grill Parts

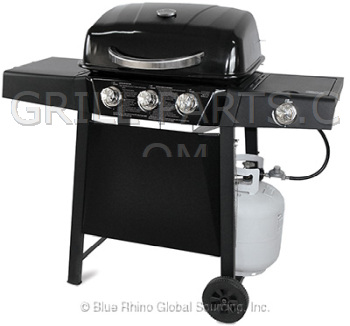

3 Burner LP Gas Grill, Black with Side Burner, Walmart # 555669838

Highest quality replacement parts for your RevoAce WM16-GBC1429WB - Free USA shipping $49 or more* - No Sales Tax*

RevoAce WM16-GBC1429WB owners manual and diagrams

Click the small images on the right to view RevoAce WM16-GBC1429WB exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce WM16-GBC1429WB-2DE65864006846-PartsExpS1.gif

Replacement grill parts for the RevoAce model: WM16-GBC1429WB

This page shows all of the parts we know fit model RevoAce WM16-GBC1429WB. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce WM16-GBC1429WB BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

WM16-GBC1429WB Burners

Click for photos

Backyard Grill Stainless Tube Burner for RevoAce model WM16-GBC1429WB.

Part Number: BGT1 (Replaces RevoAce 55-23-003)
Dimensions: 12 7/8
Material: stainless steel
Weight: 0.30

==> All RevoAce Burners.

WM16-GBC1429WB Burner Brackets and Carryovers

Click for photos

Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO2
Dimensions: 6 7/16
Material: stainless steel
Weight: 0.08

==> All RevoAce Burner Brackets and Carryovers.

WM16-GBC1429WB Cooking Grids

Click for photos

Porcelain steel cooking grid for RevoAce model WM16-GBC1429WB. Porcelain enameled, glossy finish. Sold individually.

Part Number: 50071 (Replaces RevoAce 55-23-001)
Dimension Front-to-Back: 14 7/16”
Dimension Side-to-Side: 24 13/16”
Material: porcelain steel wire
Weight: 3.2

==> All RevoAce Cooking Grids.

WM16-GBC1429WB Heat Plates

Click for photos

Backyard Grill Stainless Steel Heat Plate for RevoAce model WM16-GBC1429WB.

Part Number: BGHP1 (Replaces RevoAce 55-22-094)
Dimension Front-to-Back: 13 1/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 0.50

==> All RevoAce Heat Plates.

WM16-GBC1429WB Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

WM16-GBC1429WB Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces RevoAce 55-24-429)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

WM16-GBC1429WB Accessories

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All WM16-GBC1429WB Accessories.
