RevoAce GBC1748WS Grill Parts

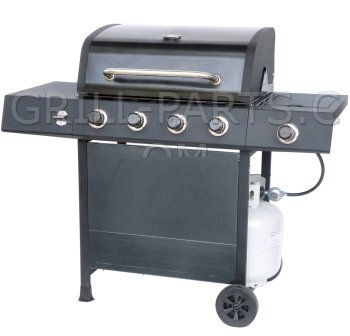

RevoAce 4-Burner LP Gas Grill with Side Burner, Stainless Steel & Black, Walmart # 564153806

Highest quality replacement parts for your RevoAce GBC1748WS - Free USA shipping $49 or more* - No Sales Tax*

RevoAce GBC1748WS owners manual and diagrams

Click the small images on the right to view RevoAce GBC1748WS exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce GBC1748WS-4E6582611130-PartsExpS1.gif

RevoAce GBC1748WS-4E6582611130-PartsLstS1.gif

Replacement grill parts to fit RevoAce model: GBC1748WS

On this page you'll find all of the parts that fit model RevoAce GBC1748WS. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce GBC1748WS BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1748WS Burners

Click for photos

stainless steel burner for RevoAce model GBC1748WS.

Part Number: 19921 (Replaces RevoAce G1646-050)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All RevoAce Burners.

GBC1748WS Cooking Grids

Click for photos

Cast Iron Cooking Grids for RevoAce model GBC1748WS. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces RevoAce G1646-030)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for RevoAce model GBC1748WS.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for RevoAce model GBC1748WS. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All RevoAce Cooking Grids.

GBC1748WS Heat Plates

Click for photos

porcelain steel Heat Plate for RevoAce model GBC1748WS.

Part Number: 91641 (Replaces RevoAce B0212-005)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All RevoAce Heat Plates.

GBC1748WS Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

GBC1748WS Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces RevoAce B0104-JRE)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

GBC1748WS Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

==> All GBC1748WS Accessories.
