Coleman Even Heat G35302 Grill Parts

Coleman logo



Coleman G35302

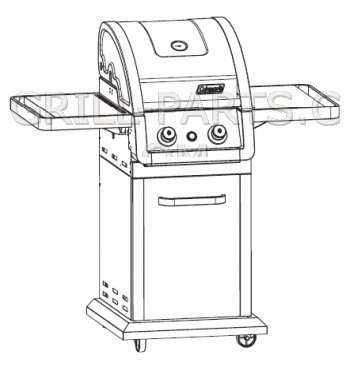

Coleman EVEN HEAT™ Small Spaces Natural Gas Barbecue



Highest quality replacement parts for your Coleman Even Heat G35302 - Free USA shipping $49 or more* - No Sales Tax*



Coleman G35302 owners manual and diagrams
Click the small images on the right to view Coleman G35302 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Coleman G35302-4E5459433-PartsExpS1.jpg  Coleman G35302-4E5459433-PartsLstS1.gif

Replacement grill parts to fit Coleman Even Heat G35302
All of the parts we have for Coleman G35302 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Coleman grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Coleman G35302 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Coleman model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



G35302 Cooking Grids

65252
Cast iron cooking grids for Coleman model G35302. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 65252
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 17 3/4”
Material: matte cast iron
Weight: 11.0

$78.11

Qty


==> All Coleman Cooking Grids.






G35302 Heat Plates

93331
Click for photos
Porcelain steel Heat Distribution Plate for Coleman model G35302. Sold individually.

Part Number: 93331
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 13/16”
Material: porcelain steel
Weight: 1.4

$19.44

Qty


==> All Coleman Heat Plates.






G35302 Igniter Components

03152
Click for photos
Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:
  • Push-button ignition module switch with two male spade connectors on back
  • Two 20” wires with female spade connectors
  • One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

$20.78

Qty


03322
Click for photos
Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.
  • 1.5 volt
  • Has two (2) spark outlets (male spade connector)
  • Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
  • Uses a single AA battery (not included)
  • Requires 7/8” mounting hole
NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03322
Dimensions: 2 5/8” x 2”
Weight: 0.5

$35.57

Qty


05223
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 05223
Material: ceramic
Weight: 0.1

$9.42

Qty


03153
Click for photos
round trigger switch for AA and AAA spark generators; use original wires

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03153
Dimensions: 17 3/4” x 1”
Weight: 0.1

$10.87

Qty


==> All Coleman Igniter Components.






G35302 Heat indicators and Meat Thermometers

00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.90

Qty


==> All Coleman Heat indicators and Meat Thermometers.






G35302 Accessories

BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11

Qty


WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All G35302 Accessories.




BBQ Part Categories






















Coleman G35302 -Sunday, Jan 26 2025
