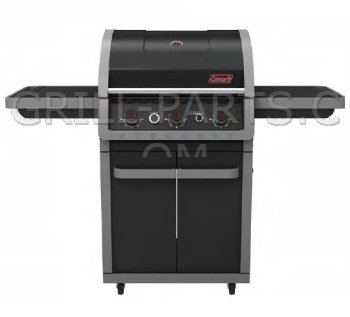

Coleman Even Heat G52215 Grill Parts

Cast iron cooking grids for Coleman model G52215. Porcelain treated, flat matte finish. Sold as a set of three (3).

Part Number: 65253
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 26 7/16”
Material: matte cast iron
Weight: 16.5

Porcelain steel Heat Distribution Plate for Coleman model G52215. Sold individually.

Part Number: 93331
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 13/16”
Material: porcelain steel
Weight: 1.4

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

round trigger switch for AA and AAA spark generators; use original wires

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03153
Dimensions: 17 3/4” x 1”
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.

• 1.5 volt
• Has four(4) spark outlets (male spade connector)
• Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03344
Dimensions: 2” x 2 1/2”
Weight: 0.5

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 05223
Material: ceramic
Weight: 0.1

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

• Requires minimum 3/8” mounting hole
• Single 1 3/8” probe
• Threaded portion of probe stops at 1/2” from base
• See photo for details

Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
